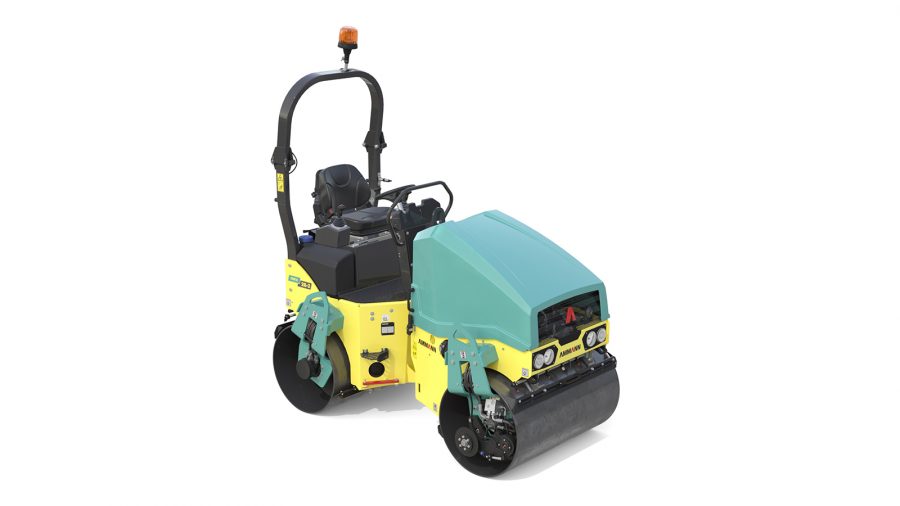

ARX26-2 Light Tandem Vibrating Roller

The Ammann ARX26-2 has an aticulation joint which makes the in-line/offset adjustment possible

ARX26-2

Ammann markets the only tandem rollers in the 1 to 2.5 tonne class

The Ammann ARX 26-2 Tandem Roller at a weight of 2460 kg makes it even easier for operators to work next to obstructions such as curbs.

The roller, with a drum width of 1200 mm, features a new articulation joint that enables quick drum adjustment from in-line to offset configurations. Rollers that are offset are able to work close to obstructions. Operators need watch only one drum, knowing the second will be a safe distance from the obstruction. The in-line setting, which enables equal distribution of compaction forces, is preferred on more open jobsites.

The articulation joint, which makes the in-line/offset adjustment possible, is maintenance-free.

The roller features a Kubota engine and includes an intuitive dashboard layout, a redesign of the front and rear of the machine and a new LED light system. Reduced sound levels improve operator and jobsite safety, as does the new light system.

Specifications

Weight 2650kg
Drum Width 1200mm
Centrifugal Force 1 = 38.8kN / 2 = 46.5kN
Frequency 58/66 Hz

Features

  • Operation weight 2515kg
  • Power by Kubota D1803-CR-E48
  • Full side clearance right and left
  • Easy engine access
  • Teflon articulated joint with lifetime lubrication
  • Multiple water filtration
  • Foldable ROPS for easy transport
  • Two scrapers per drum
