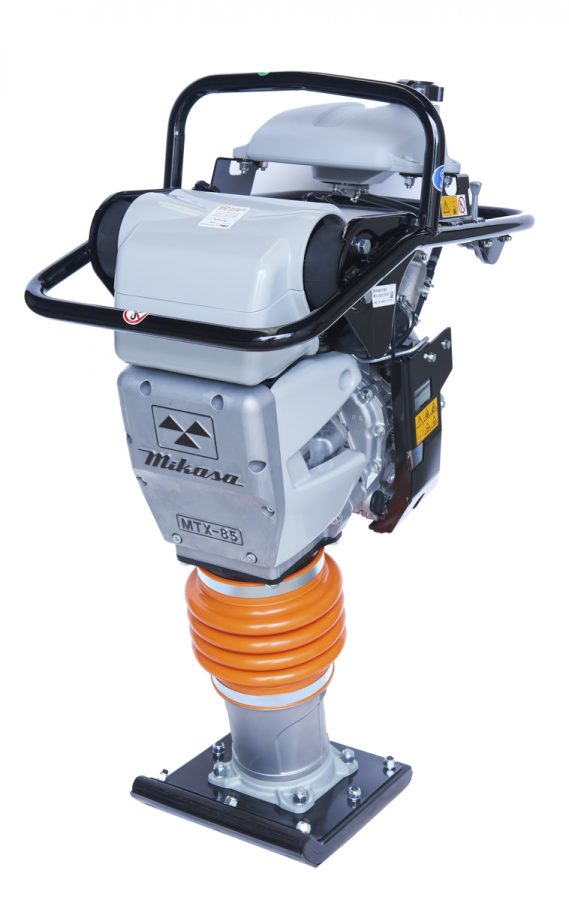

Mikasa 93kg Diesel Rammer

Mikasa 93kg diesel rammer with low maintenance and great compaction quality


Mikasa Trench rammers are world leaders for balance, compaction, ease of operation and functionality. All these features add up to high work efficiency and less operator fatigue.

Features such as a single function throttle lever that stops the engine and shuts the fuel off in one single operation, an air cleaner system with 3 times the dust holding capacity of others, VAS handle (vibration absorbing handle system) reduces vibration to the operator meaning longer run times, heavy duty ribbed bellows with 2 year warranty against failure, one piece pressed wooden foot with a hardened steel plate, large fuel tank incorporating an hour meter and tachometer.

The 85 DY model has a diesel engine and will suit any contractor or hire company where longevity, low maintenance and superb compaction is needed


Weight 93kg
Plate (mm) 340 x 285
Impact Force 15.7kN
Engine Yanmar L48N Diesel


  • Blows per minute 656-698
  • Jumping Stroke 50-80mm
  • Mikasa ribbed bellows with 2 year warranty
  • Throttle level that controls idle stopping and fuel shut-off
  • Hour meter and tachometer
  • 4 stage air cleaner system
  • Lifting point on handle
  • Transport roller fitted to main handle for ease of loading
  • Transport handle on the foot
  • Recoil start
