Carry 230

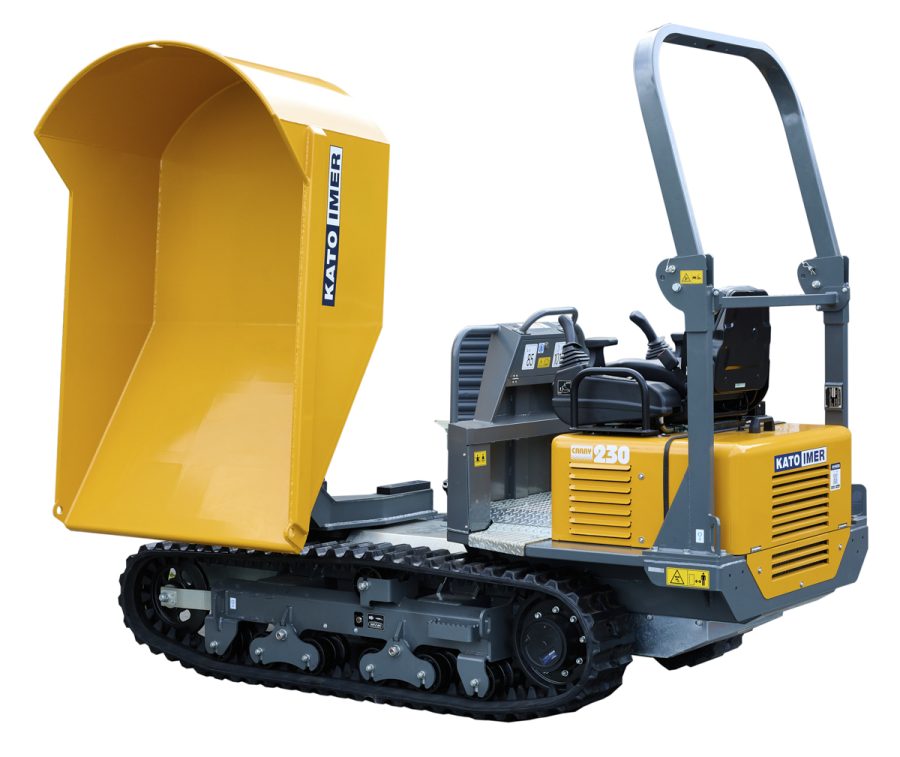

The KATO Carry 230 tracked dumper - ideal for transporting bulky material with a three way dump tray and up to 2300 kg tip capacity.


The KATO Carry 230 tracked dumper is built to move and unload a multitude of materials like concrete and stone quickly and efficiently.


Weight2285 kg
Capacity2300 kg
EngineKubota diesel V1505, 24.8 HP


  • Bucket with 180 degree trilateral unloading with hydraulic lift and swivel
  • Spacious ground clearance and rubber tracks provide greater mobility at high speeds
  • Foldable ROPS for opertor protection
  • Adjustable operator seat in central rear position with access from both sides
  • Easy access to the engine, transmission and more
  • Battery housing under engine bonnet
  • Payload capacity 1.17 cubic metres
  • Electric start
  • Length 323cm
  • Height 253cm
  • Width 129cm
  • Travel Speed 5.0 km/h
