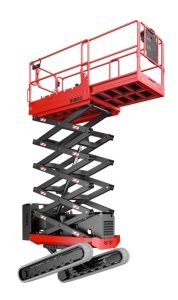

850 BL Evo Tracked Scissor Lift

Almac Athena 850 BL EVO with a working height of 7.9M this all-terrain tracked scissor lift is ideal for uneven terrain and self levels while driving stowed

850-BL-EVO

The ATHENA 850 BL EVO from Almac features intelligent monitoring systems and state-of-the-art engineering, offering trades and industry a safer alternative for working on slopes and on slight inclines in tight access situations. Automatic self-leveling whilst driving stowed at speed.

The ATHENA 850 BL EVO provides superior self-leveling while raised and boasts a diesel engine as well as the ability to perform the work of scaffolding, slab scissors, and an all-terrain unit, with cost-effectiveness and convenience, hence negating the need for multiple machines on site.

ATHENA 870 BL EVO is also available with a basket size of 1.5 x 1.2m.

Specifications

Weight2460 kg
Working height7.9M
Lift capacity250 kg
PowerKubota Diesel Z482

Features

  • 6.1M Moving height
  • Automatic basket levelling
  • Longitudinal levelling front +/- 16 degrees
  • Longitudinal levelling rear +/- 20 degrees
  • Lateral levelling +/- 15 degrees
  • Gradeability 25 degrees
  • Side slope 21 degrees
  • Length: 2.14m
  • Compact and easily towable
  • Dual power source
  • Kubota Z482 diesel engine / 240V electric
  • Extendable and collapsible basket
  • Hydraulic expanding tracks
  • Active dynamic Bi-levelling chassis
  • Wired remote and ground controls
  • Lateral levelling for moving at heights = +/- 4 degrees
  • Proportional hydraulic commands
