Laser Guided Screed with 20.44 sq.m coverage per screed pass and a screen head of 3 metres in width

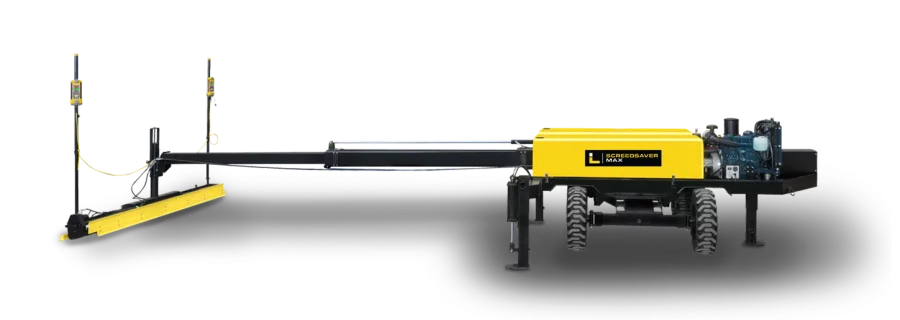

The SCREEDSAVER MAX® laser guided concrete screeding machione is packed with features and also provides a great return on investment with high-production output.

The SCREEDSAVER MAX® includes wireless remote control, fully automatic operation, 2 D laser control and optional 3D LPS control. the MAX achieves floor level numbers that can only be achieved by a boom operated screed.


Weight 1987kg
Length (M) 4.5
Height (M)1.39
Engine Kubota D902 25 hp Tier 4 Final


  • Width: 1.9m
  • Length: 4.5m
  • Height: 1.39m
  • Weight: 1987kg
  • 2-wheel proportional drive
  • Coverage per screed pass: 20.44 sq.m
  • Screed coverage: 5.5m boom extension with a 3m High Performance screed head
  • Kubota D902 25 hp Tier 4 Final
  • Comes with: 2D Laser levelling for Grade, Slope. Dual Scope Trimble LR30 Eyes.
  • Optional: 3D Systems for Contoured concrete paving – Topcon 3D and LPS robotic.
